Stenner Econ FP Multi-Function Dosing Pump – E20PH

Description

Stenner Econ FP Multiple Function All-in-One Pump

Sometimes good things come in small packages

The Econ FP is compact, easy to program and can respond to flow input from a variety of water conditioning equipment

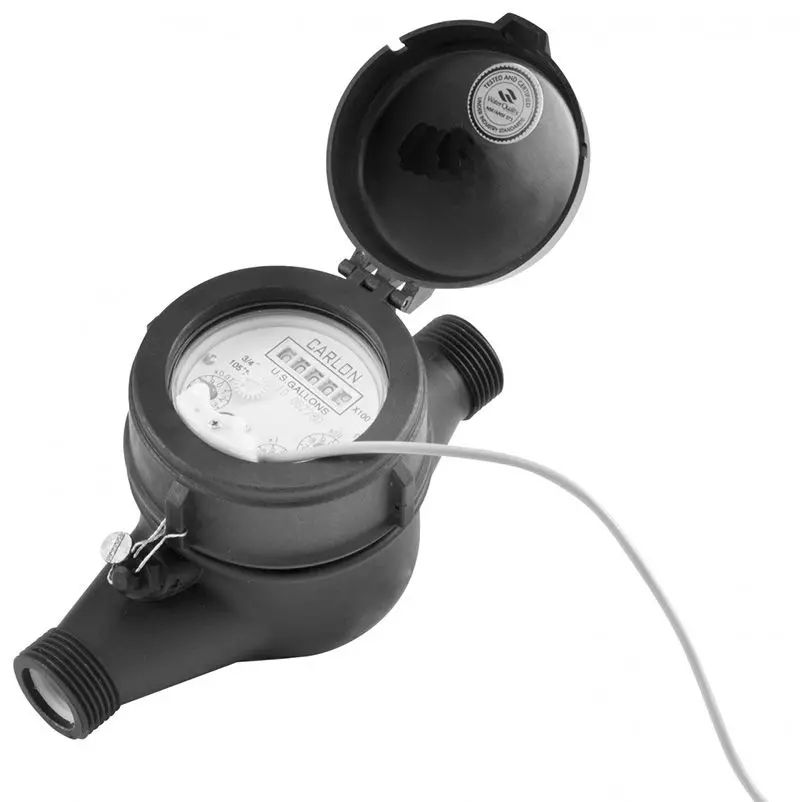

Water Meter

The pump will accept a pulse input from a dry contact water meter and has adjustable operating times of  0.1-1, 0.5-5, 1-10, 2-20 or 6-60 seconds per pulse.

Flow Switch

Accepting a signal from a dry contact flow switch, the pump will run at the selected speed when the switch is closed and stop when the switch opens.

24 VAC Input

The pump will run at the selected speed when it nreceives a 24 VAC signal from a water softener or other equipment.

Econ FP is ideal for light duty water conditioning applications:

• Up to 30 gpd @ 80 psi
• Wall mountable
• Adjustable from 10% to 100%
• Patented quick release pump head design
• Solid one piece tube construction
• UL & CUL Listed
• NSF 61 & 372 listed
• 120V 60Hz
• 10′ power cord
• 1/4″ white suction & discharge tubing

Options:

• Output Rate:
  • 0.45 – 4.5 GPD
  • 1.6 – 16 GPD
  • 3.0 – 30 GPD

Note:  Due to the custom nature of all Stenner pumps, they are not returnable.  Please make sure you are ordering the correct pump for your application.  If you have any questions, please call or email us before purchasing.
