Description

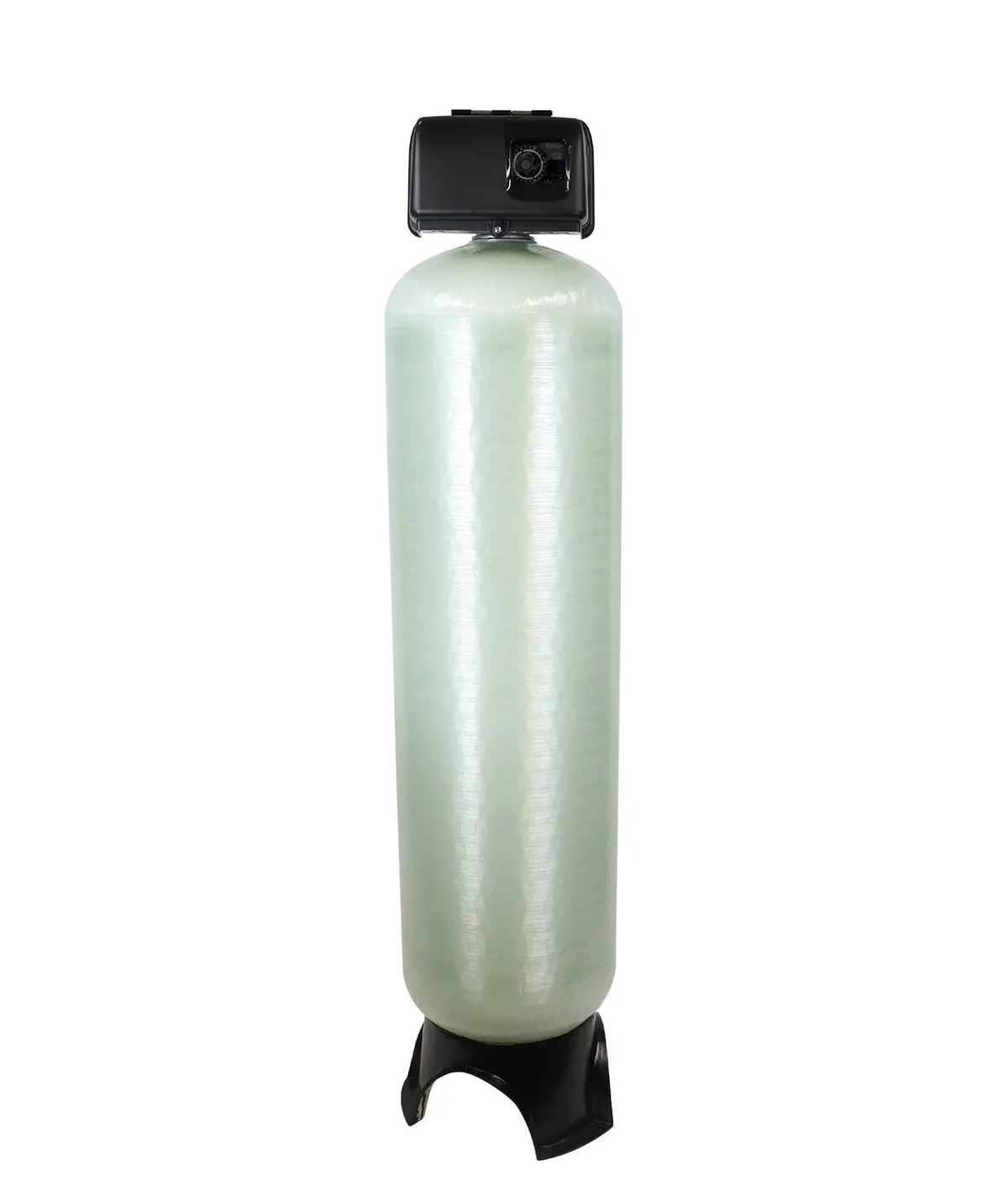

Fleck 2815 1.5 Inch Commercial Backwashing Carbon Filter | 10 GPM to 30 GPM
The Fleck 2815 1.5″ Backwashing Carbon Filter is designed to remove chlorine, chemicals and pesticides, as well as bad tastes and odors from the water supply due to prolonged contact with coconut shell granular activated carbon (GAC), making it perfect for RO pre-treatment, foodservices and other commercial applications.
Features
- Flow rates from 10 GPM to 30 GPM

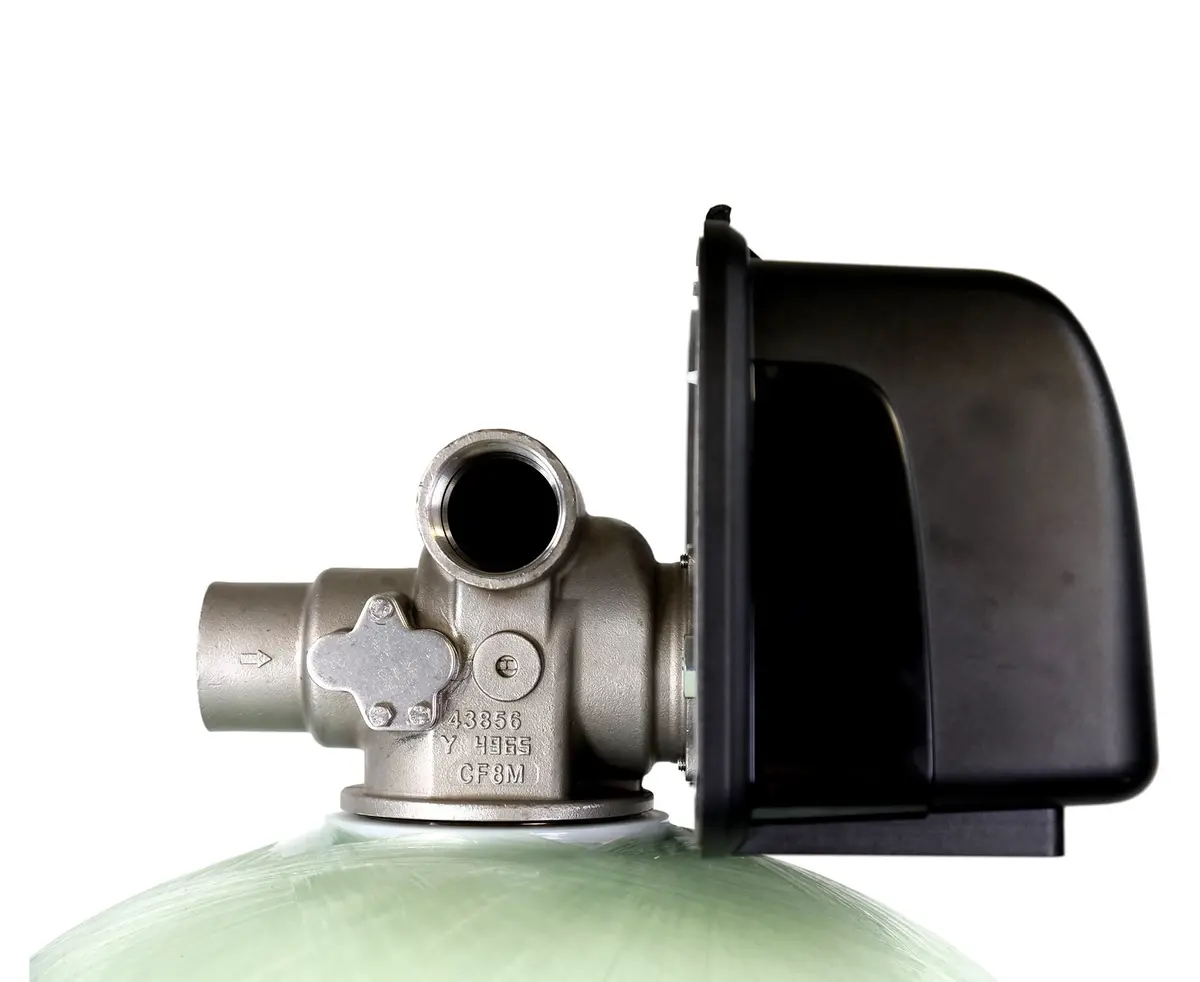

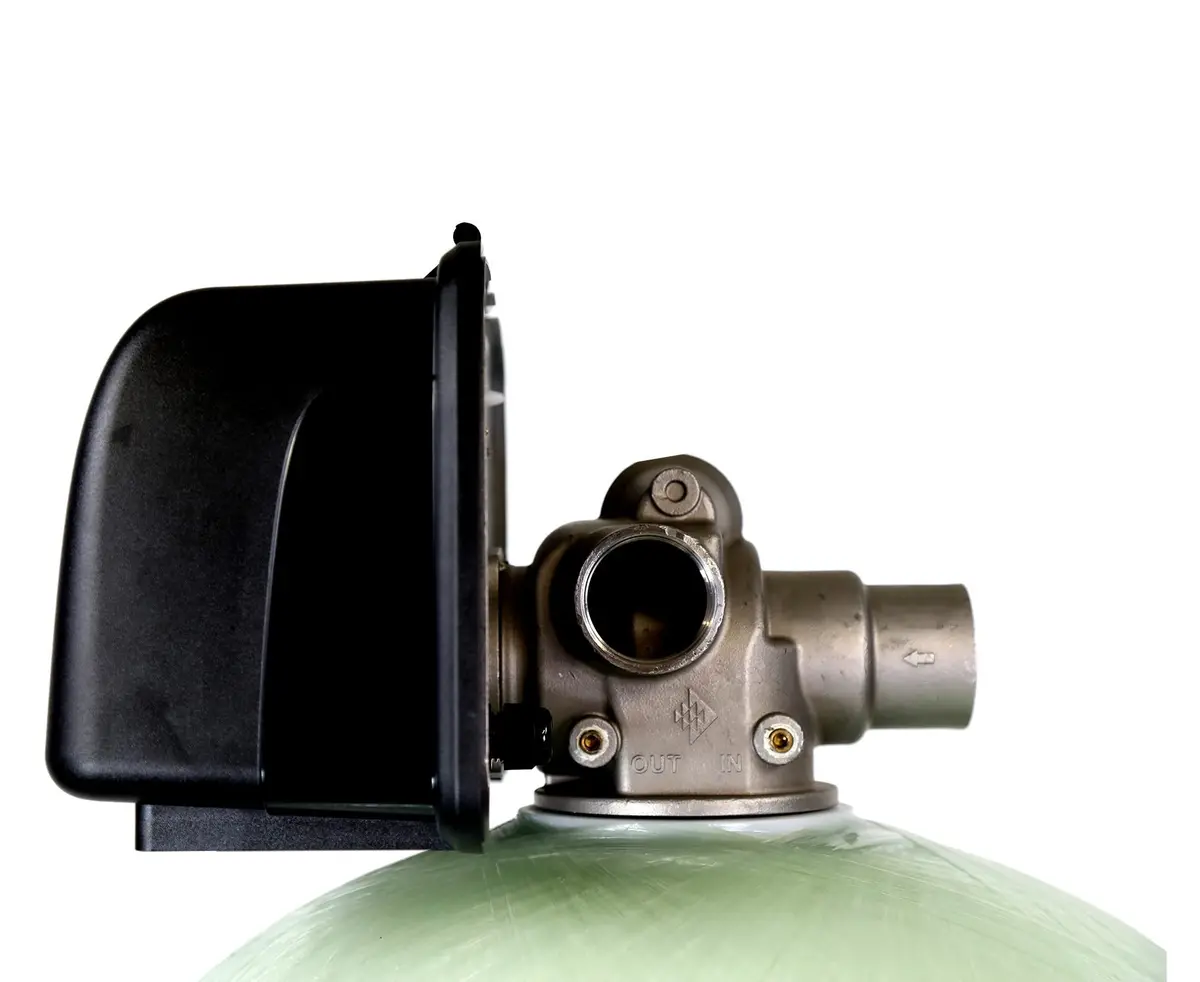

- Fully-adjustable Fleck 2815 NXT2 filter valve
- Stainless Steel valve body for superior strength and durability

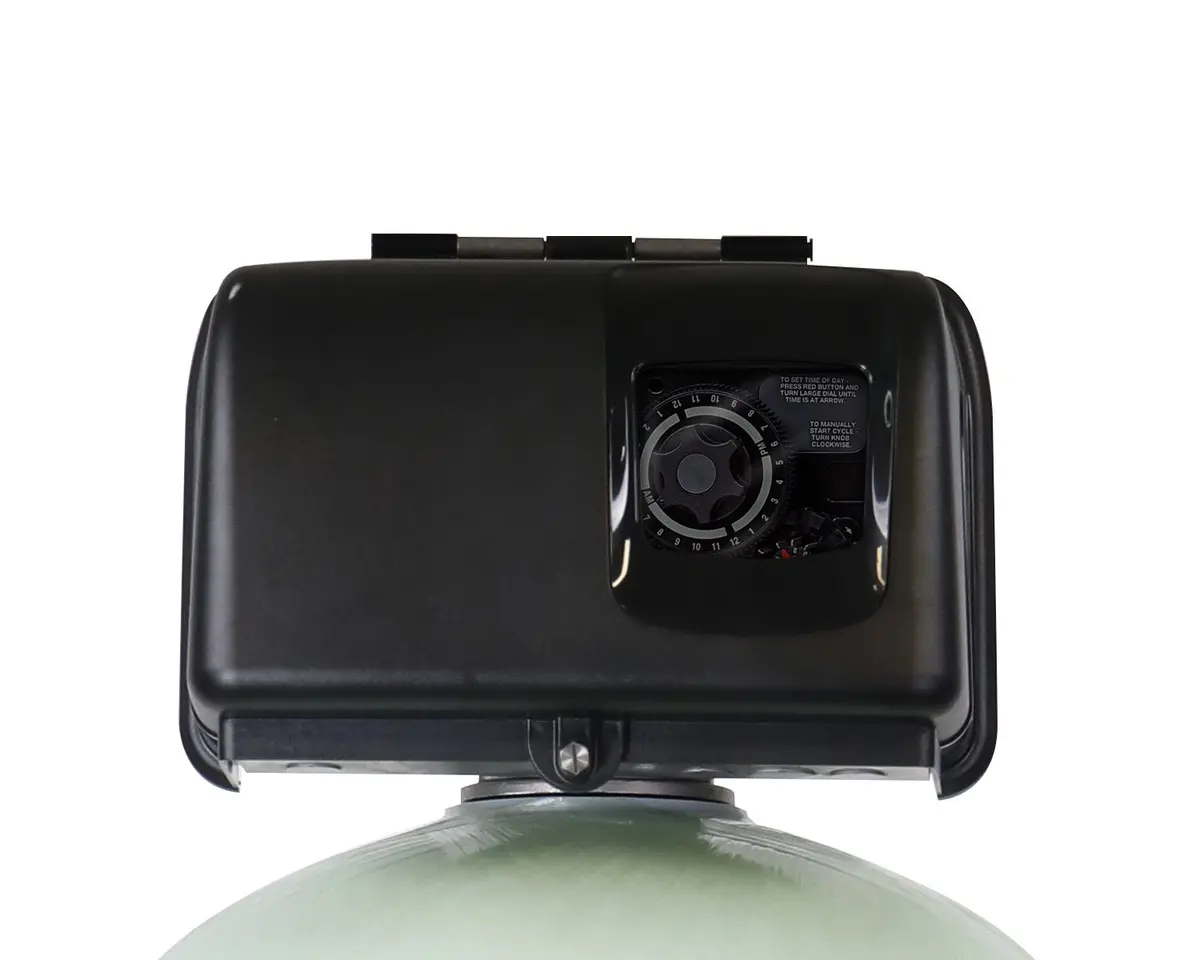

- NXT2 Computerized Controller Provides tremendous flexibility
- Time-tested hydraulically-balanced piston, seals and spacers designed to control service flow and backwashing
- Just one internal moving part
- NSF Certified fiberglass resin tanks (tanks are generally natural in color, but can vary)
- Highest quality coconut shell Granular Activated Carbon (GAC)
- Perfect for de-chlorination
- Ideal for RO pre-treatment
Specifications
| Model # | Media | Gravel |
|---|---|---|
| 140-28F-GAC-3 | 3 cu/ft | 50 lbs |
| 140-28F-GAC-4 | 4 cu/ft | 50 lbs |
| 140-28F-GAC-5 | 5 cu/ft | 75 lbs |
| 140-28F-GAC-7 | 7 cu/ft | 100 lbs |
| 140-28F-GAC-10 VIEW DRAWING |
10 cu/ft | 125 lbs |
| Peak Flow Rate | Backwash Flow Rate | Mineral Tank | Shipping Weight |
|---|---|---|---|
| 10 GPM | 10 GPM | 14″ x 65″ | 230 lbs |
| 14 GPM | 15 GPM | 16″ x 65″ | 380 lbs |
| 18 GPM | 20 GPM | 18″ x 65″ | 475 lbs |
| 24 GPM | 25 GPM | 21″ x 62″ | 600 lbs |
| 30 GPM | 30 GPM | 24″ x 72″ | 800 lbs |
Remember: In order to get proper filtration, you need prolonged contact with the carbon. Therefore, its better to oversize the filter than undersize it. You should base your flow rate on the continuous flow, not the maximum flow.
