Description
Fleck 2815 1.5 Inch Commercial Backwashing Sediment | 21 GPM to 62 GPM
The Fleck 2815 Backwashing Sediment Filter is designed to remove sand, silt and sediment to below 5 microns. It backwashes the solids down the drain so that there are no cartridges to change.
Features
- Flow rates from 21 GPM to 62 GPM

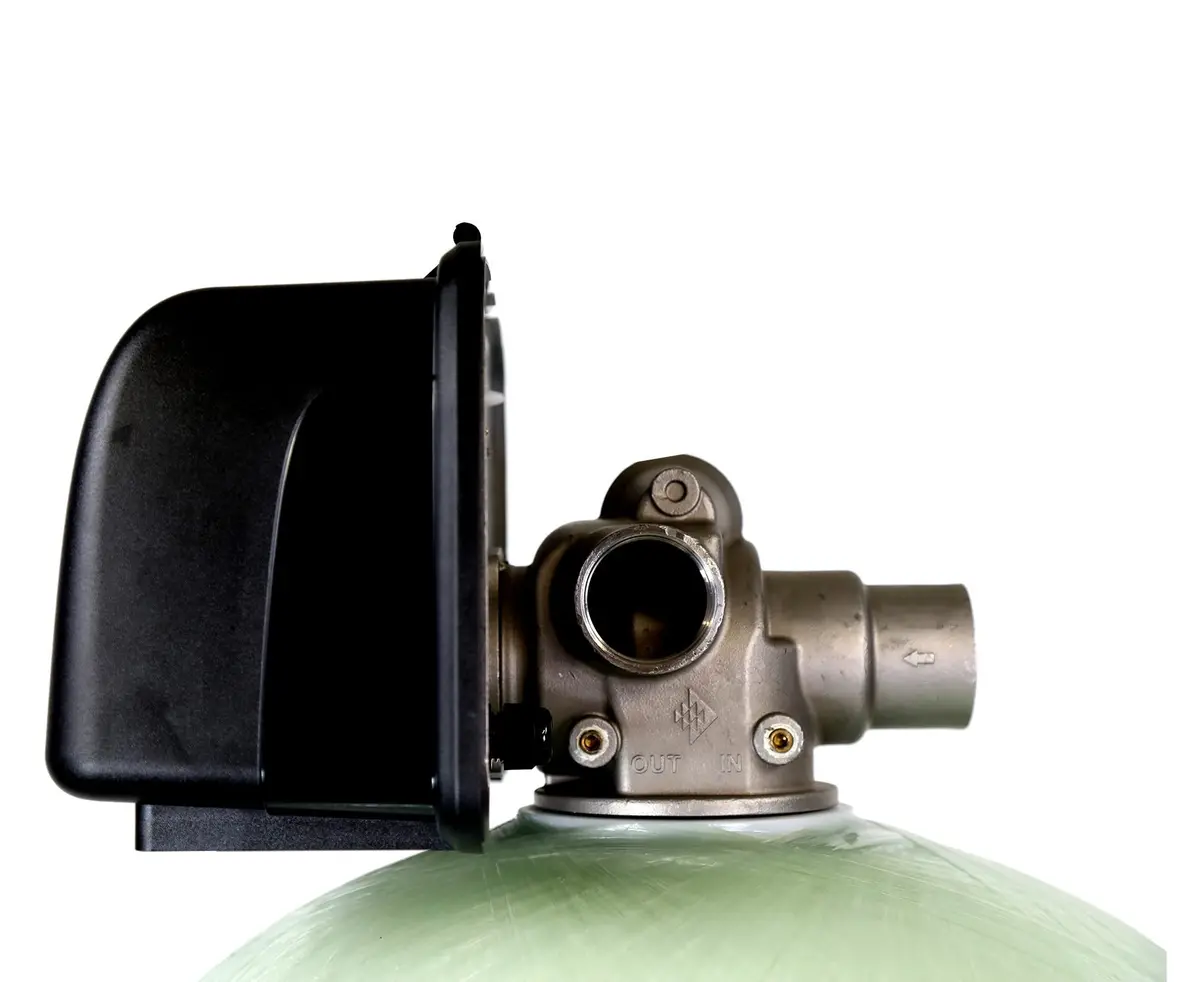

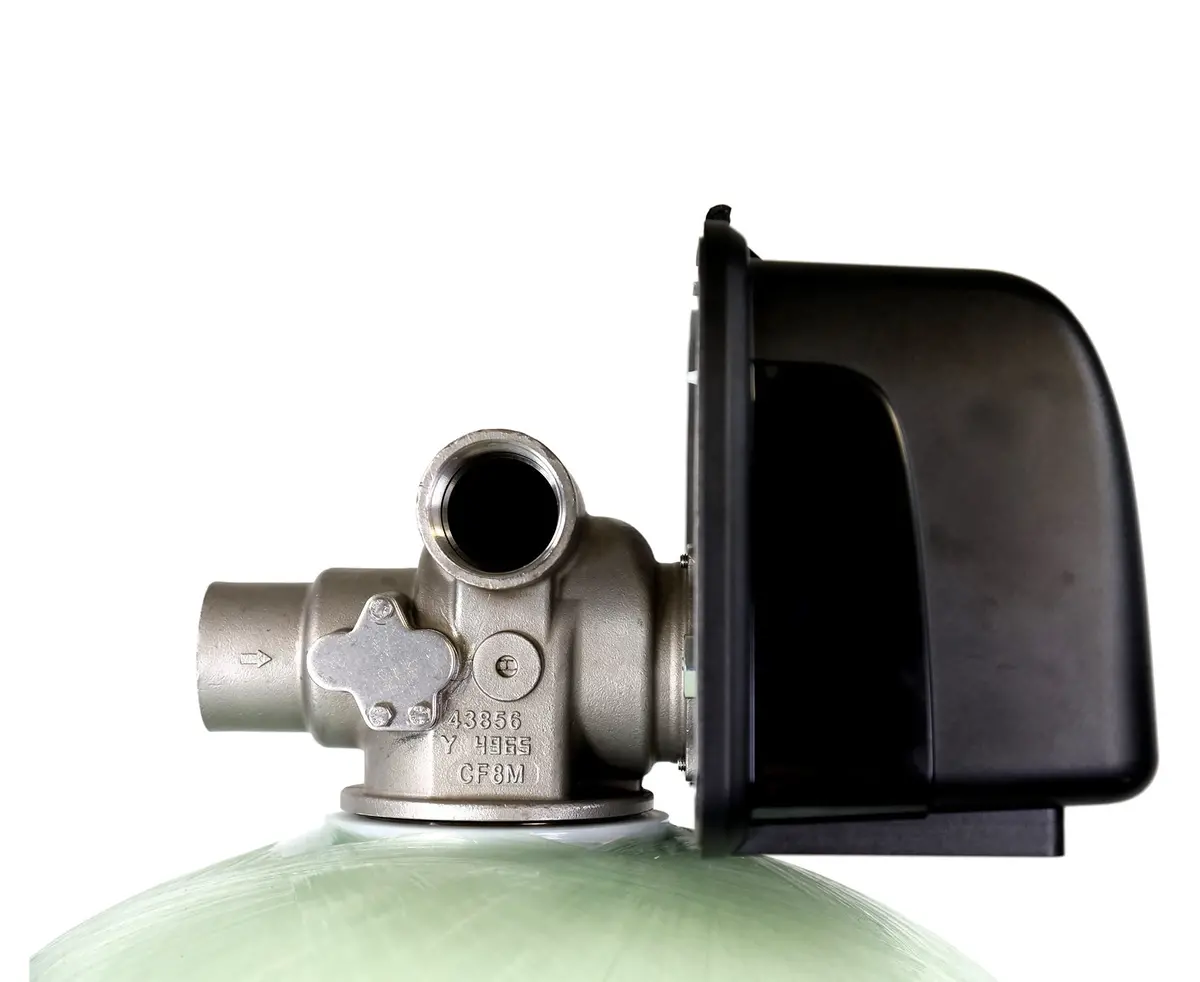

- Fully-adjustable Fleck 2815 NXT2 filter valve
- Stainless Steel valve body for superior strength and durability

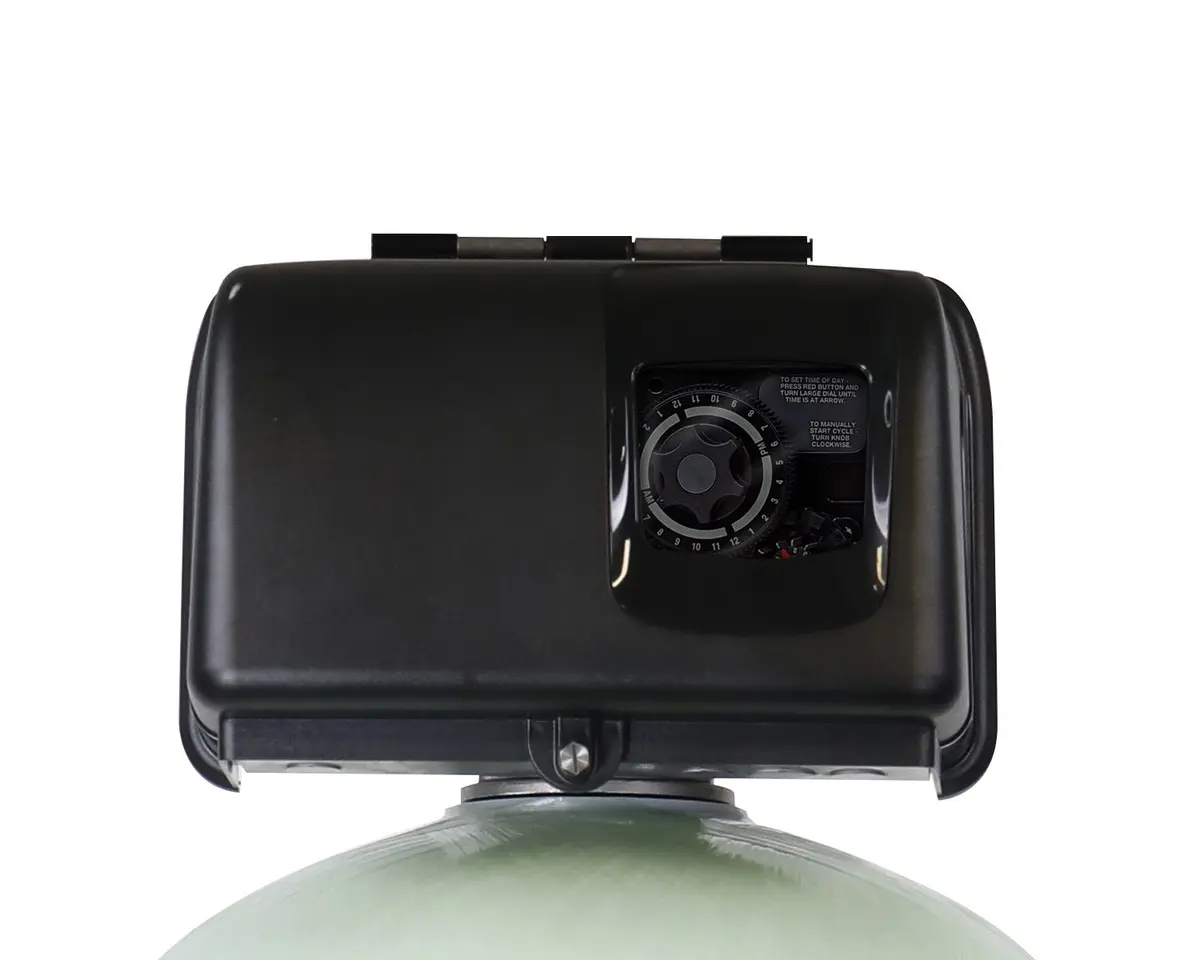

- NXT2 Computerized Controller Provides tremendous flexibility
- Time-tested hydraulically-balanced piston, seals and spacers designed to control service flow and backwashing
- Just one internal moving part
- NSF Certified fiberglass resin tanks (tanks are generally natural in color, but can vary)
- Used to reduce sediment before other treatment products
- Ideal for RO pre-treatment
Specifications
| Model # | Media | Gravel |
|---|---|---|
| 140-28F-CSB-3 | 3 cu/ft | 50 lbs |
| 140-28F-CSB-4 | 4 cu/ft | 50 lbs |
| 140-28F-CSB-5 | 5 cu/ft | 75 lbs |
| 140-28F-CSB-7 VIEW DRAWING |
7 cu/ft | 100 lbs |
| 140-28F-CSB-10 | 10 cu/ft | 125 lbs |
| Peak Flow Rate | Backwash Flow Rate | Mineral Tank | Shipping Weight |
|---|---|---|---|
| 21 GPM | 15 GPM | 14″ x 65″ | 300 lbs |
| 28 GPM | 20 GPM | 16″ x 65″ | 475 lbs |
| 33 GPM | 25 GPM | 18″ x 65″ | 650 lbs |
| 50 GPM | 35 GPM | 21″ x 62″ | 775 lbs |
| 62 GPM | 40 GPM | 24″ x 72″ | 1100 lbs |
Remember: In order to get proper filtration, you need prolonged contact with the media. Therefore, its better to oversize the filter than undersize it. You should base your flow rate on the continuous flow, not the maximum flow.
