Description

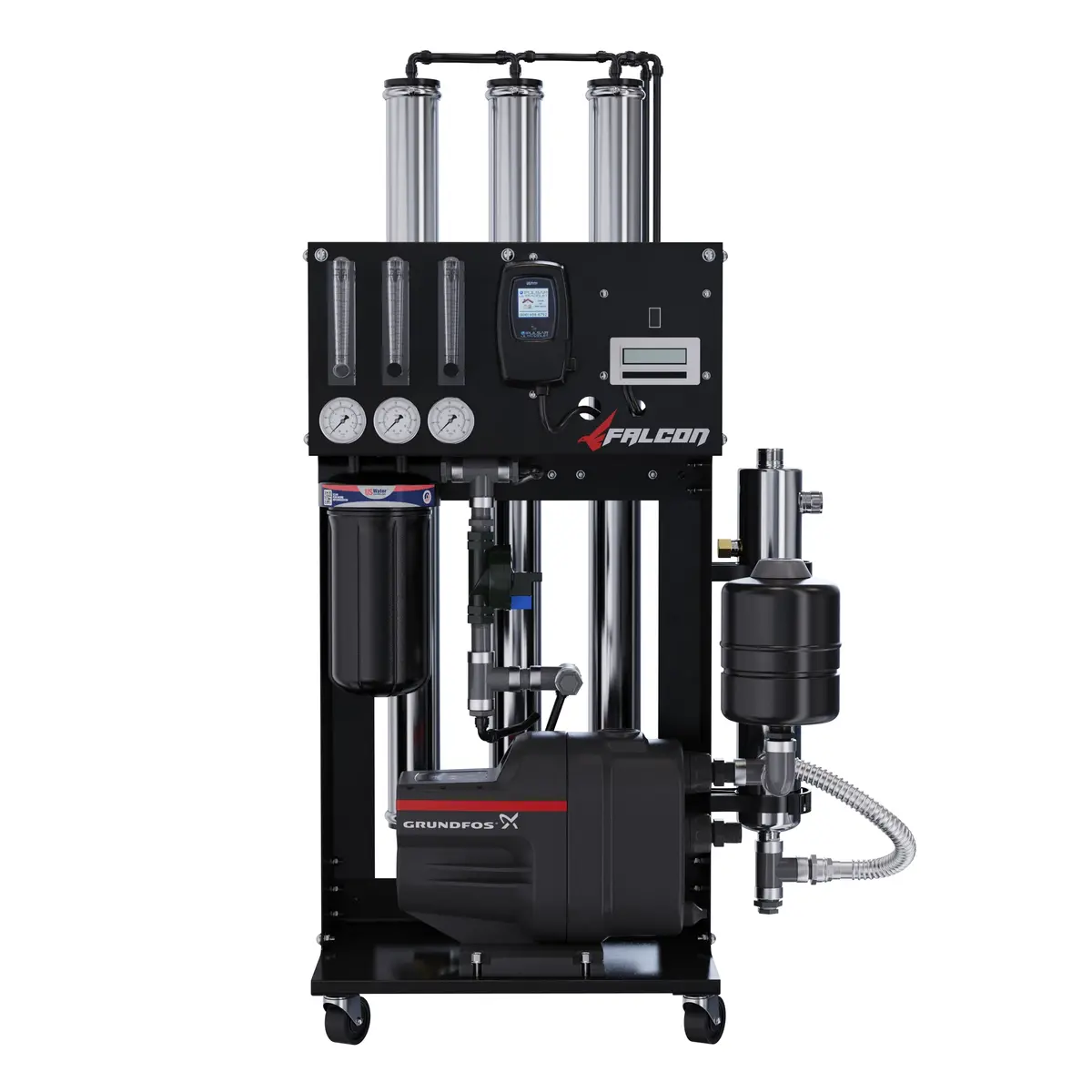

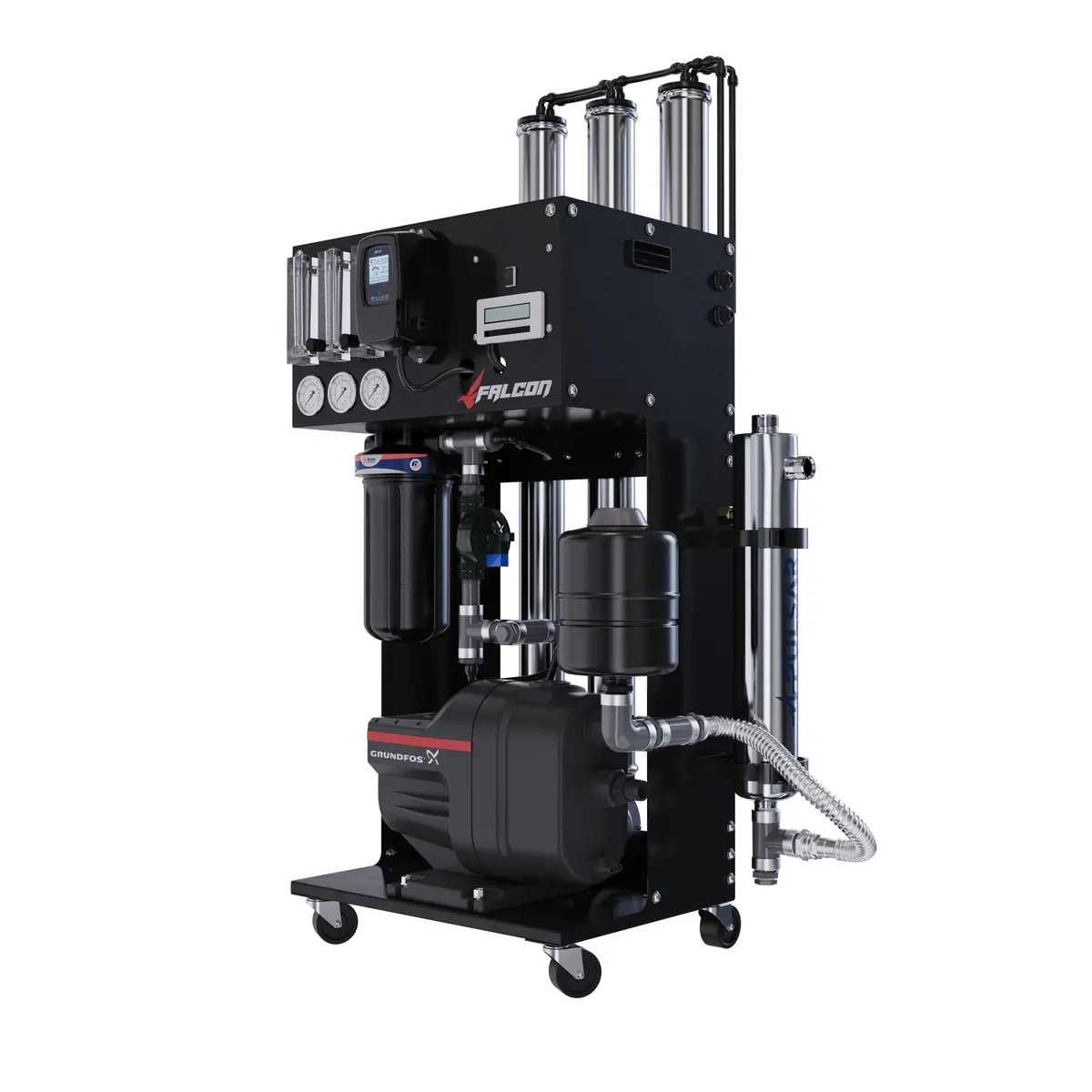

Falcon Whole House Reverse Osmosis System

Compact. Powerful. Ready for Whole-Home Purified Water.

The Falcon Whole House Reverse Osmosis System was engineered for homeowners who want a simple, reliable, and compact solution for producing high-purity water throughout the entire home. Instead of piecing together pumps, membranes, controls, and tanks from scratch, the Falcon arrives as a fully integrated, pre-tested package that’s easy to install, easy to service, and built to perform. Whether you’re on city water or a private well, it delivers consistent water quality with professional-grade components and a footprint designed for real-world residential spaces.

Key Benefits

• Ships fully assembled and tested to reduce installation time and get you up and running faster.

• Compact Design

  Fits tight mechanical rooms or utility spaces without compromising performance.

• Simple to Maintain

  Front-access controls, gauges, and filters streamline ongoing service and monitoring.

• Lower Lifetime Cost

  Durable build quality and efficient water recovery reduce long-term operating expenses.

• Peace of Mind

  Backed by a 1-year limited warranty and assembled in the USA.

Ideal For

• Homes on city water looking for full-house purification.
• Private wells with TDS under 1,000 ppm.
• Homeowners wanting a single whole-house solution instead of multiple point-of-use filters.
• Properties with limited space, where a compact skid is preferred over pieced-together components.
• Households with 1–3 bathrooms and low to moderate water consumption.

Core Features

• High-Efficiency RO Membranes

  Delivers up to 2,000 gallons per day of purified water, depending on water quality and configuration.

• Steel-Reinforced Fittings

  Prevents cracking and thread failure common with traditional plastic fittings.

• Flexible Storage Tank Options

  Compatible with atmospheric tanks ranging from 80 to 250 gallons in multiple footprint/height configurations.

• High-Pressure Switch

  Enables automatic start/stop functionality when paired with a bladder tank.

• Pre-Treatment Integration

  Supports chemical injection, carbon filtration, sediment filtration, backwashing filters, UV disinfection, and other standard water-conditioning equipment.

• Professional-Grade Rotary Vane Pump

  Delivers commercial-style pressure and flow in a quiet, compact, and efficient design.

• Fully Customizable

  Available in multiple build configurations; adapts to unique residential or light-commercial applications.

• Modular Steel Frame

  Black powder-coated, corrosion-resistant, and pre-drilled for adding accessories and adjacent treatment equipment.

• Double O-Ring Pre-Filter Housing

  Includes a 5-micron sediment pre-filter to protect membranes and internal components.

• Simple Control System

  Manages tank level input, automatic operation, quality indication, and membrane flushing cycles.

Falcon System Sizing Options

Falcon 1000

• Capacity: 1,000 GPD
• Ideal Home Size: 1–2 bathrooms
• Use Case: City water or well water with low to moderate daily water usage.

Falcon 2000

• Capacity: 2,000 GPD
• Ideal Home Size: 2–3 bathrooms
• Use Case: Higher daily demand or light commercial-style usage.

Note: Actual production varies based on water temperature, pressure, and feed water quality.

Models	224-FALWH-1000	224-FALWH-2000
Configuration	Single Pass	Single Pass
Feed Water Source	City or Well Water	City or Well Water
Standard Recovery Rate	41%	58%
Recovery with Concentrate Recycle	Up to 75%	Up to 75%
Vessel Array	1:1:1	1:1:1
Vessel Quantity	2	2
Nominal Salt Rejection %	98.5	98.5
Permeate Flow * gpm (lpm)	0.69	1.39
Min Feed Flow gpm (lpm)	1.69	2.39
Max Feed Flow gpm (lpm)	2.69	3.39
Max Concentrate Flow gpm (lpm)	1	1
Pump Type	Rotary Vane	Rotary Vane
Motor HP (kW)	3/4 (0.56)	3/4 (0.56)
RPM @ 60 Hz (50Hz)	1725/1425	1725/1425
Feed Water Connection	1″ FNPT	1″ FNPT
Permeate Connection	3/8″ Tubing	3/8″ Tubing
Concentrate Connection	3/8″ Tubing	3/8″ Tubing
Voltage	110V 60Hz 1PH	110V 60Hz 1PH
Voltage Amp Draw	10.9/4.9/9.8/4.9	10.9/4.9/9.8/4.9
Membrane Quantity	3	3
Membrane Size	2.5″ x 21″ (2521)	2.5″ x 40″ (2540)
L x W x H Inch	24 x 31 x 52	24 x 31 x 55
Weight with Scala and Pulsar UV (lbs)	120	160

Max/Min Temperature F° (C°)	105 (40.96) / 40 (4.44)	105 (40.96) / 40 (4.44)
Max/Min Ambient Temperature F° (C°)	120 (48.89) / 35 (1.66)	120 (48.89) / 35 (1.66)
Max/Min Feed Pressure psi (bar)	85 (5.86) / 35 (2.41)	85 (5.86) / 35 (2.41)
Maximum Operating Pressure psi (bar)	150 (10.34)	150 (10.34)
Maximum SDI Rating	<3	<3
Maximum Turbidity NTU	1	1
Maximum Free Chlorine ppm	0	0
Maximum TDS ppm	1000	1000
Maximum Hardness gpg	<1	<1
Max. Min pH (Continuous)	11pH/3pH	11pH/3pH
